Tunnel · Shuttle · Roller hearth · Bisque
Refractories for Ceramics & Kilns Industry
Tunnel and shuttle kilns firing ceramic tableware, sanitaryware, tile and technical ceramics demand low thermal-mass IFB linings so the kiln can cycle efficiently with low gas consumption, plus mullite and high-alumina refractories for crowns, walls and cycling roof construction. Kiln furniture — saggars, batts, posts, supports — is itself a refractory product and must survive thousands of cycles without bowing, spalling or contaminating the ware. firebrickssource.com — a Rajkot, Gujarat, India based manufacturer-cum-merchant exporter of refractory bricks — supplies kiln linings, kiln furniture and the full IFB K-23 through K-30 range to ceramic plants worldwide, with light-weight, low-iron grades that improve fuel efficiency and stabilise firing curves.
Wear mechanisms · Ceramic kilns
Pain points in ceramic-kiln refractories
Heat loss from heavy linings
Dense hot-face wastes fuel on every cycle. Solution: K-23 IFB or K-26 IFB hot-face, dense brick only where load demands it.
Roof creep at high T
Sprung-arch and flat-suspended roofs sag under sustained 1400 °C. Solution: mullite and 70% high-alumina with low creep.
Kiln furniture wear
Saggars and batts crack and curl after a few hundred cycles. Solution: cordierite-mullite and pressed mullite saggars with stable phase composition.
Matched refractory products
Recommended refractories for ceramics & kilns
K-23 Insulating Fire Brick
Hot-face IFB to 1260 °C. Tunnel kiln walls, bisque firing, low-temperature ceramic processes.

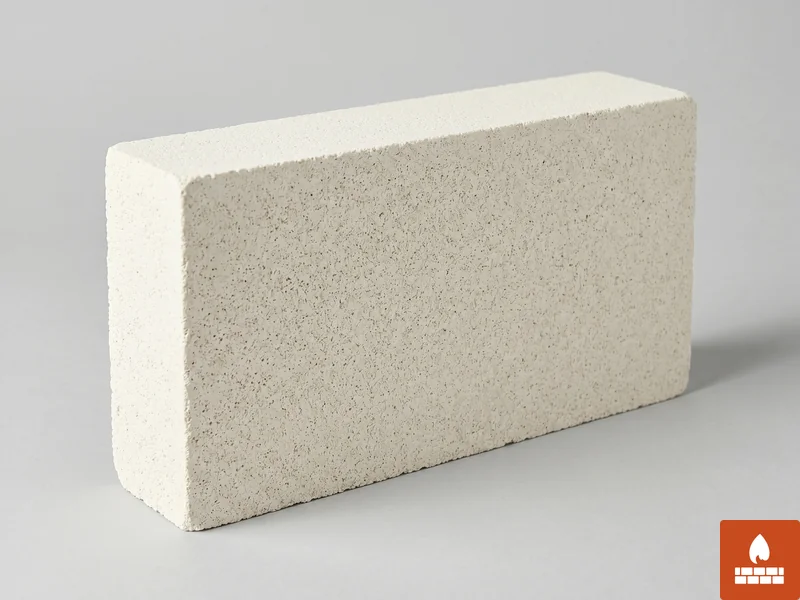

K-26 Insulating Fire Brick
Hot-face IFB to 1430 °C. Tunnel kiln roofs, shuttle kiln walls, ceramic tableware kilns.
K-28 Insulating Fire Brick
Hot-face IFB to 1540 °C. Technical ceramic kilns, electric resistance furnace lining.
Mullite Bricks
Kiln roof, kiln car deck, kiln furniture support pillars. Low creep, low expansion, dimensional stability.
60% High-Alumina
Roller hearth supports, kiln car decks, shuttle-kiln dense back-up.
Zone-by-zone specification
Application zones — ceramics & kilns
| Kiln zone | Recommended brick | Temperature °C | Key property |
|---|---|---|---|
| Tunnel kiln roof | Mullite / 70% alumina | 1450 | Creep + cycling |
| Tunnel kiln walls | K-26 IFB | 1400 | Insulation |
| Kiln car deck | IFB + refractory concrete | 1300 | Mass-saving |
| Shuttle kiln roof | Mullite | 1400 | Cycling |
| Roller hearth | SiC | 1300 | Wear + heat |
| Bisque tunnel | Fireclay + IFB | 1100 | Cost-effective |
| Kiln furniture | Cordierite-mullite | 1350 | Light + stable |
Related categories
Adjacent product families
Browse insulating IFB, specialty refractories, high-alumina bricks and the parent product index, or return to industries.
Talk to us
Kiln engineers on call
Send firing curve, ware mass and kiln drawing — we'll specify IFB grade and kiln-furniture loadout for the campaign.
