Rotary kiln · Preheater · Cooler · Lime shaft
Refractories for Cement & Lime Industry
Rotary cement kilns are the largest single consumer of refractories worldwide. The burning zone demands chemical stability against clinker melt; the transition zone needs alkali resistance and coating stability; preheaters need cycling and build-up resistance; and the cooler needs to survive abrasion from clinker nodules at 1400 °C. Lime shaft kilns add a different challenge — clean basic slag with high CaO loading. firebrickssource.com — a Rajkot, Gujarat, India based manufacturer-cum-merchant exporter of refractory bricks — supplies cement-grade refractories matched to each kiln zone, plus dolomite and magnesia for lime kilns. We serve cement majors, mid-tier producers and lime plants in Asia, Africa, the Middle East and Latin America, with zoned lining proposals, datasheets and consolidated container shipments from Mundra port.
Wear mechanisms · Cement kiln
Pain points in cement and lime refractories
Coating instability in burning zone
Clinker coating cycles loose-tight as fuel mix and feed swing. Solution: magnesia-spinel bricks with flexible thermal expansion.
Alkali infiltration in transition zone
K2O and Na2O vapours penetrate and burst dense alumina. Solution: mullite-andalusite and 70% high-alumina bricks with low porosity.
Thermal cycling in preheater
Frequent stop-starts crack rigid hot-face linings. Solution: spinel-bonded high-alumina 60% with controlled microcrack network.
Abrasion in cooler & takeoff
Clinker nodules erode the cooler nose and grate. Solution: SiC composite bricks and 60% alumina cooler bricks.
Matched refractory products
Recommended refractories for cement & lime
Magnesia-Chrome / Magnesia-Spinel
Burning-zone hot face. Magnesia-spinel for chrome-free operations; magnesia-chrome where coating stability is critical.
Mullite Bricks
Transition and preheater zones — excellent alkali resistance, low creep, dimensional stability at 1450 °C.
70% High-Alumina
Transition zone, kiln inlet, riser duct. Strong alkali resistance and load-bearing capacity.
60% High-Alumina
Calciner, cooler, kiln hood — workhorse grade for cement plants worldwide.
Dolomite Bricks
Lime kilns, cement burning-zone alternative — clean chemistry compatible with CaO clinker.

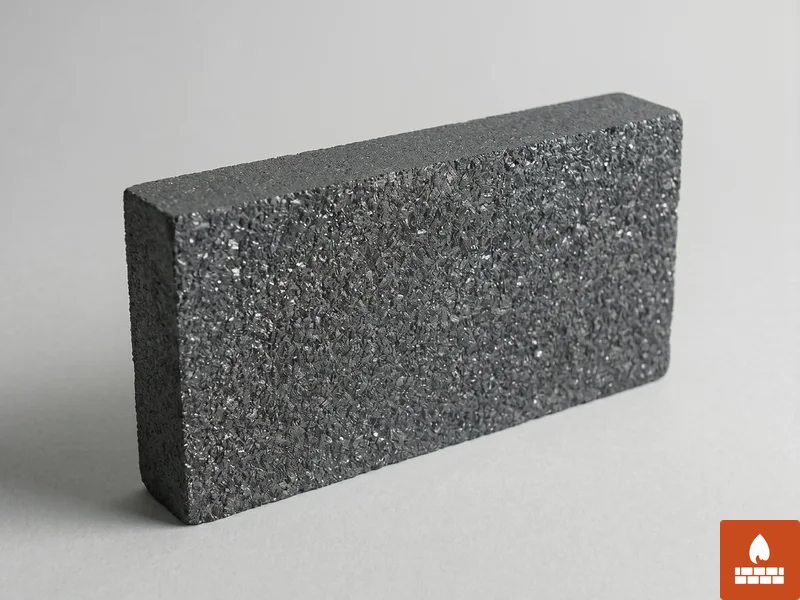

Silicon-Carbide Bricks
Cooler nose ring, calciner riser, anti-build-up zones. Outstanding abrasion and thermal-conductivity profile.
Zone-by-zone specification
Application zones — cement & lime
| Furnace zone | Recommended brick | Temperature °C | Key property |
|---|---|---|---|
| Burning zone | Magnesia-spinel / magnesia-chrome | 1500 | Coating + slag |
| Transition zone | 70% high-alumina | 1450 | Alkali resistance |
| Calciner | 60% high-alumina | 1300 | Thermal cycling |
| Preheater | 45 – 50% alumina / mullite | 1200 | Anti-build-up |
| Cooler | 60% alumina + SiC | 1400 | Abrasion |
| Kiln hood | 60% alumina | 1400 | Heat shock |
| Lime kiln (shaft) | Dolomite / magnesia | 1500 | Basic slag |
| Lime cooler | High-alumina 50% | 1200 | Abrasion |
Related categories
Adjacent product families
Browse basic refractories, high-alumina bricks, specialty refractories and the parent product index, or return to industries for adjacent applications.
Talk to us
Cement-kiln engineers on call
Send your kiln diameter, fuel mix and chlorine/alkali levels — we'll specify zoned grades and a 6-month consumption forecast.
