Waste-to-energy · Biomass · CFB · Incinerator
Refractories for Waste & Power Plants Industry
Waste-to-energy boilers, biomass combustors and circulating fluidised-bed (CFB) power plants face the most aggressive combination of abrasion, sulphur, chlorine and thermal cycling found in modern industry. Refractory life in a chlorine-loaded municipal-waste boiler is measured in months, not years — chloride salts attack alumina at 800 °C and silica binders dissolve in alkali condensates. Biomass adds K and Na slagging. CFB risers add fluidised particulate erosion that abrades any soft surface. firebrickssource.com — a Rajkot, Gujarat, India based manufacturer-cum-merchant exporter of refractory bricks — supplies SiC-based and abrasion-resistant linings engineered for these conditions, with low-iron, low-cement compositions designed to maximise tube protection and minimise downtime.
Wear mechanisms · WtE & CFB
Pain points in waste & power refractories
Chlorine corrosion (WtE)
HCl + alkali chlorides aggressively attack alumina silicates at 600 – 900 °C. Solution: dense SiC tiles and bricks with low-iron mortar.
Abrasion in CFB risers
Recirculating sand and ash at 6 – 10 m/s erodes hot-face in months. Solution: SiC + alumina-spinel composite bricks.
Slagging in biomass
K and Na ash forms low-melting eutectics that flux refractory. Solution: 70% high-alumina with spinel additions and dense matrix.
Matched refractory products
Recommended refractories for waste & power
Silicon-Carbide Bricks & Tiles
WtE first-pass, CFB combustor, biomass cyclones. Outstanding abrasion + Cl resistance.
60% High-Alumina
Cooler-zone second pass, incinerator back-up, boiler refractory liner.
70% High-Alumina
Incinerator hot zone, biomass furnace walls, severe-service WtE inserts.

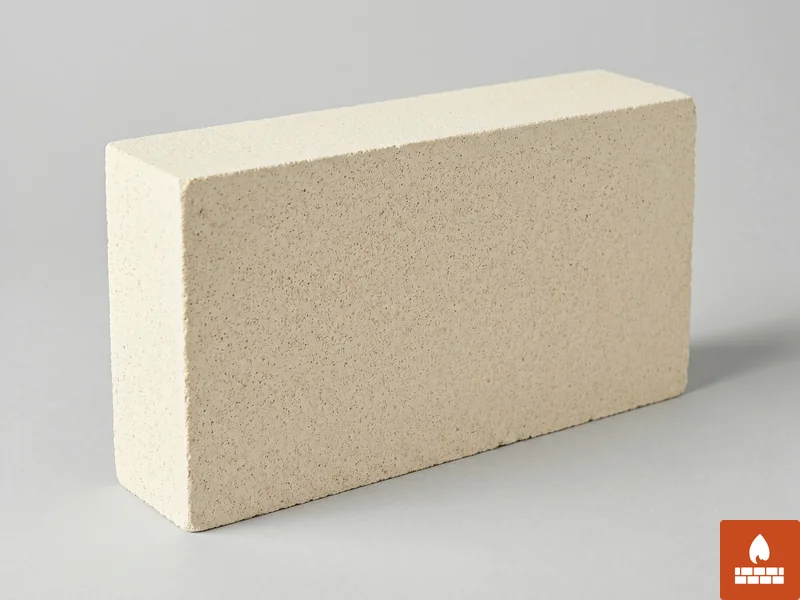

K-28 Insulating Fire Brick
Boiler back-up insulation. Behind dense SiC or alumina hot-face.
Custom Precast Shapes
Burner blocks, cyclone diplegs, ash hopper inserts and grate refractories drawn to your boiler.
Zone-by-zone specification
Application zones — waste & power
| Boiler zone | Recommended brick | Temperature °C | Key property |
|---|---|---|---|
| WtE first pass | Dense SiC | 1100 | Cl + abrasion |
| WtE second pass | 60% high-alumina + insulating | 900 | Cooler zone |
| Biomass furnace | SiC + 70% alumina | 1200 | Slag + abrasion |
| CFB combustor | SiC + alumina-spinel | 950 | Particulate |
| Incinerator hot zone | High-alumina 70% | 1300 | Hot service |
| Boiler refractory | K-28 + 60% alumina | 1100 | Insulation |
Related categories
Adjacent product families
Browse specialty refractories, high-alumina bricks, insulating IFB, special shapes and the parent product index, or return to industries.
Talk to us
Boiler engineers on call
Send waste analysis (Cl, S, ash), boiler drawing and tube layout — we'll propose SiC tile + back-up plus precast for the hopper.
Request a Quote
